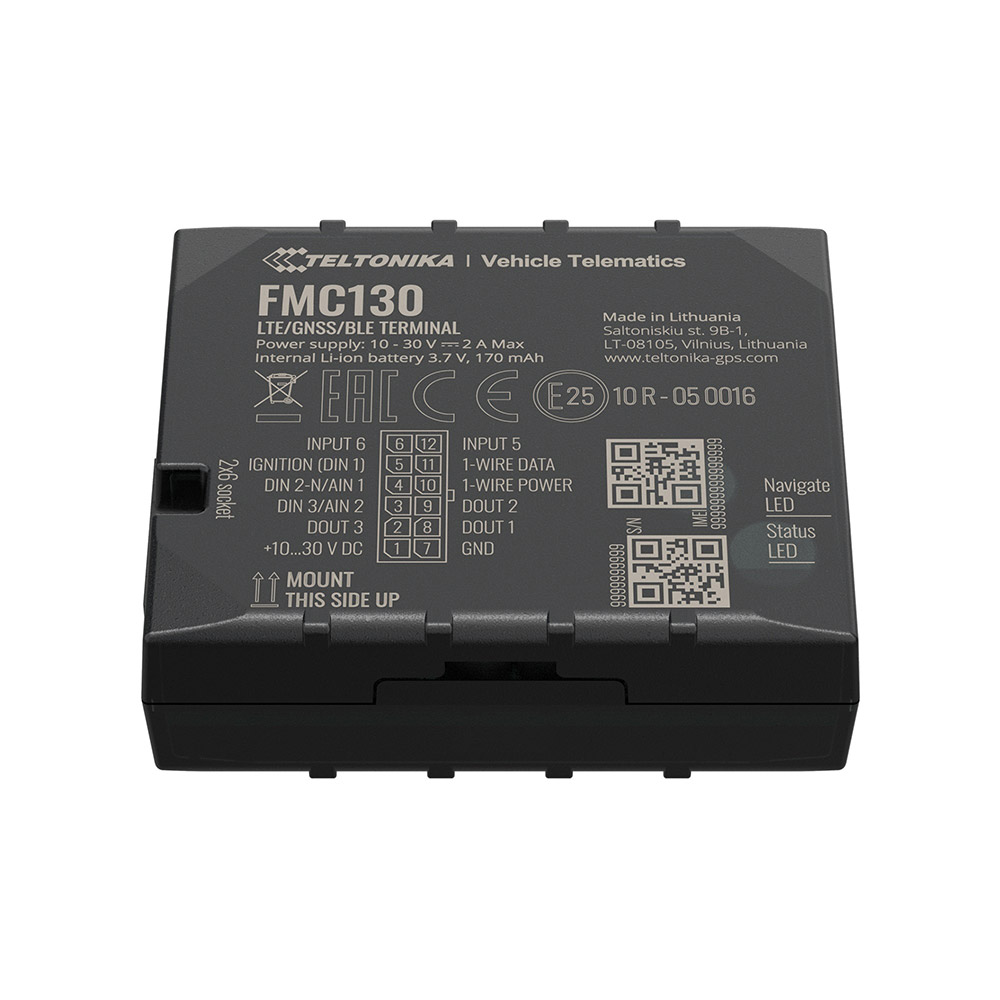

Connected Fleet using Wired 4G Tracking Device (LTE-CAT1)

A fleet management software that allows vehicle tracking, monitor driver behaviour, real-time reporting, create geofencing, data analytics, dashcam and more

$250.00$550.00

Pay as you drive – Select max kms you will drive in 12 months (Including Sim Card)

Device + Software Lic 5000Km
Device + Software Lic 15000Km
Device + Software Lic Unlimited
Clear

Status: in stock

SKU:ACFW4GLTE

Track vehicles and drivers, manage assets, get clear visibility on fleet operations, and improve overall efficiency. With these wired 4G LTE devices, you can collate, process, and analyze lots of data and information – it lets you make informed decisions regarding your business.

Promote safe driving techniques by monitoring idling, speeding, crashes, and a plethora of other parameters. It ensures there is no excessive strain on vehicle components, so they don’t get worn out before their lifespan. Thus, expenses are greatly reduced when it comes to fuel usage, insurance, and maintenance. The geo-fencing feature lets you create designated areas, so you receive instant alerts if a vehicle leaves the zone. It prevents thefts and unauthorized access.

The device helps with both backend and vehicular operational improvements, to avoid potential breakdowns, repair related costs, and coordination issues, which means timely completion of tasks, which prevents revenue leakage.

Keep tabs on all your assets round the clock. The remote logging feature maintains detailed records that you can access anytime. Put the device into a deep sleep mode when you don’t need it, and turn on the geo-fencing feature to prevent thefts and unauthorized access. Offline tracking is available too.

You will also get an alert if your vehicle gets towed.

Data Storage 12 months
Frequency 10 secs
Wireless Technology 2G/3G/4G
Web Application – Chrome, FireFox and IE ✔
Supports Android & iOS App ✔
Driver App(Release April 2021) ✔
IoT Sensors ✔
Map Google Map

Real Time Monitoring ✔
Asset Maintenance & Service history ✔
POI & Geofencing ✔
Replay and Rewind ✔
Incident Management ✔
Module for Security and Law Enforcement ✔

Standard & Dynamic Reports ✔
Admin and Client Level Reports (Export – PDF & CSV) ✔
Standard & Dynamic Dashboard ✔
Smart Grids ✔

Dynamic and Standard Alerts ✔
Email Notifications ✔
Time Policy ✔

Manage Device, Asset, Driver and SIM ✔
Web API ✔

Users & Groups ✔
Permissions ✔
Usage(Release April 2021)

24*7 Email Support ✔
Online Training ✔

Information LTE(CAT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH

1x Micro-SIM card
K-Line (OBD II)
128MB memory ✔
Dual-sim (1x micro SIM card; 1x eSIM) ✔
Negative Input ✔
Internal IoT/GSM antenna ✔
Internal GSM antenna ✔
Internal GNSS antenna ✔
OBD II connector
OBD II Data –
DIN – digital input 3
AIN – analog input 2
DOUT 3
1-Wire® ✔
Accelerometer ✔
Battery 170mAh Li-ion 3.7V
IP41 ✔
10 – 30V ✔

Firmware
NITZ time synch. ✔
Configuration over Bluetooth ✔
Bluetooth sensors support ✔
LV-CAN support ✔
ALL-CAN support ✔
Ignition detection ✔
Geo-fence ✔
Sleep/Deep sleep ✔
Overspeeding detection ✔
Remote Log ✔
GPRS commands ✔
RFID 1-Wire® ✔
iButton 1-Wire® ✔
Temp. 1-Wire® ✔
Immobilizer ✔
Eco driving ✔
Green driving ✔
GNSS Fuel Counter
Fuel monitoring LLS (analog) ✔
Jamming detection –
SMS event ✔
Idling detection ✔
Crash detection ✔
Odometer ✔
Trip detection ✔
Towing detection ✔
Integrated scenarios ✔
Management via SMS ✔
Offline tracking ✔
Auto Geofencing ✔
Voice call
NTP ✔
FOTA (Firmware Over The Air) ✔

Circuit Diagram

Technical Specification

Information LTE(CAT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH

1x Micro-SIM card –
K-Line (OBD II) –
128MB memory ✔
Dual-sim (1x micro SIM card; 1x eSIM) ✔
Negative Input ✔
Internal IoT/GSM antenna ✔
Internal GSM antenna ✔
Internal GNSS antenna ✔
OBD II connector –
OBD II Data –
DIN – digital input 3
AIN – analog input 2
DOUT 3
1-Wire® ✔
Accelerometer ✔
Battery 170mAh Li-ion 3.7V
IP41 ✔
10 – 30V ✔

Firmware
NITZ time synch. ✔
Configuration over Bluetooth ✔
Bluetooth sensors support ✔
LV-CAN support ✔
ALL-CAN support ✔
Ignition detection ✔
Geo-fence ✔
Sleep/Deep sleep ✔
Overspeeding detection ✔
Remote Log ✔
GPRS commands ✔
RFID 1-Wire® ✔
iButton 1-Wire® ✔
Temp. 1-Wire® ✔
Immobilizer ✔
Eco driving ✔
Green driving ✔
GNSS Fuel Counter –
Fuel monitoring LLS (analog) ✔
Jamming detection –
SMS event ✔
Idling detection ✔
Crash detection ✔
Odometer ✔
Trip detection ✔
Towing detection ✔
Integrated scenarios ✔
Management via SMS ✔
Offline tracking ✔
Auto Geofencing ✔
Voice call –
NTP ✔
FOTA (Firmware Over The Air) ✔
